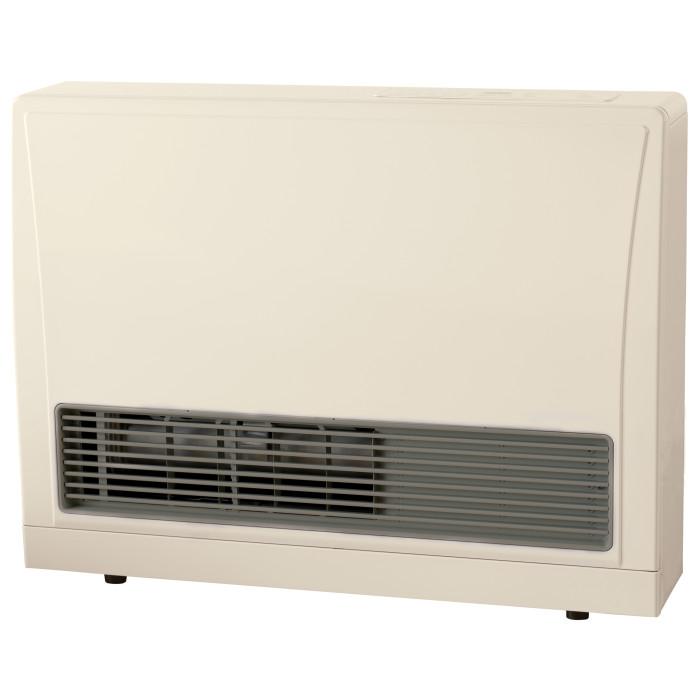

EX17DTP DT Model Series

EX17DTP is a quick, flexible installed, ductless, propane gas, direct vent wall heater from Rinnai; the perfect supplemental or specific zone heating solution that seeks out cold spots and within seconds begins to gently heat the room or space for maximum comfort. WiFi enabled thermostat connection ready.

  • 8,700 BTU (minimum)
    16,700 BTU (maximum)
  • Surface Mounted
  • Warranty
View Rebates & Offers
EX17DTP is a quick, flexible installed, ductless, propane gas, direct vent wall heater from Rinnai; the perfect supplemental or specific zone heating solution that seeks out cold spots and within seconds begins to gently heat the room or space for maximum comfort. WiFi enabled thermostat connection ready.

Supply Connections

Connection Connection Size
Gas 1/2" FNPT / (13mm)
Product Depth 10.1 in / (257 mm)
Product Height 22.9 in / (589 mm)
Product Width 29.9 in / (760 mm)
Product Weight 51 lb / (23 kg)
Gas Type Propane Gas
Installation Type Surface Mounted
Central Heating Capacity 16,700 BTU / (4.9 kW)

Warranty information is available in the Installation & Owner Manual.

Browse product manuals, spec sheets, and other documentation below.

0 documents

Download File

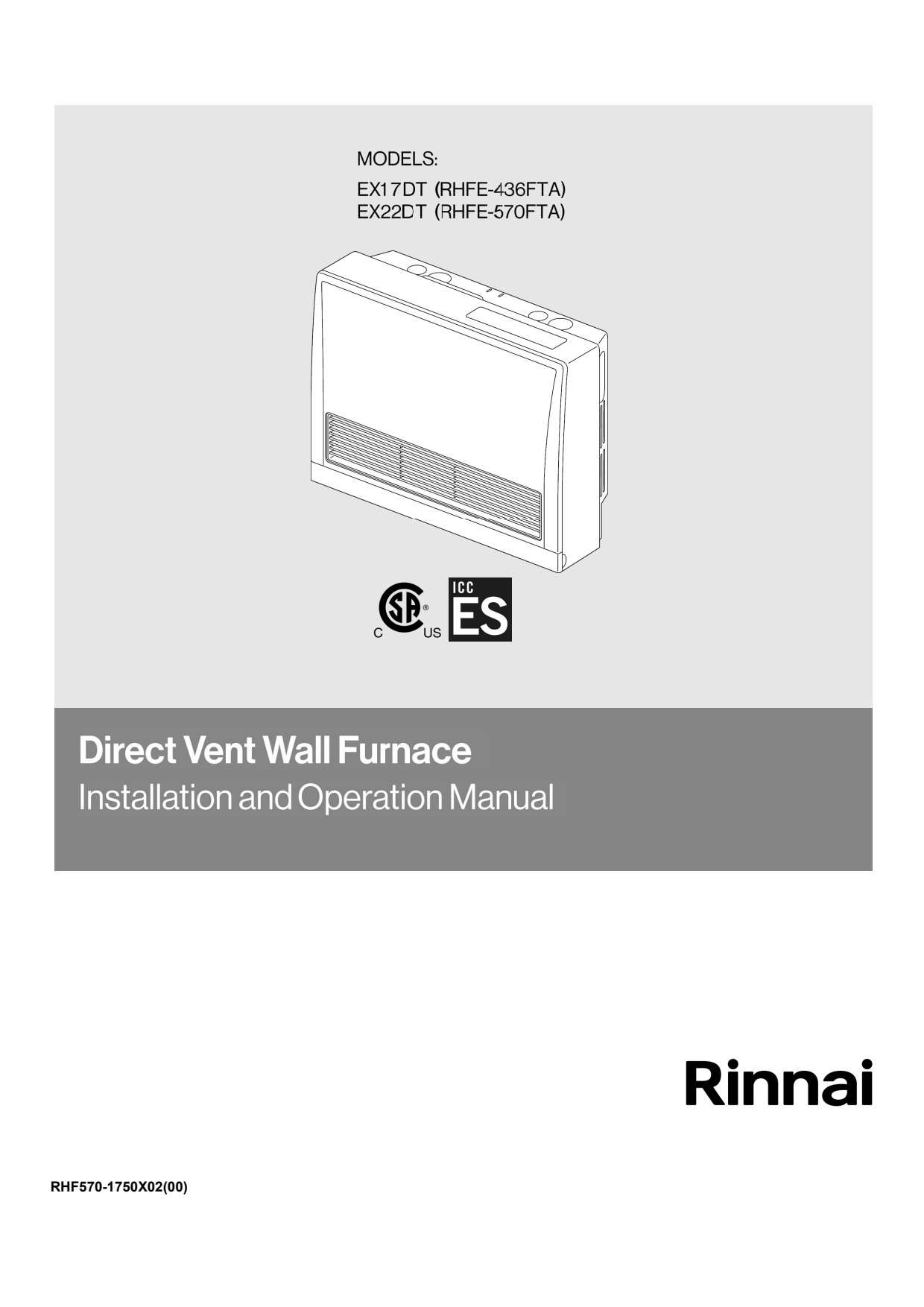

200000084 EX17DT and EX22DT Installation and Operation Manual_ENGLISH
PDF 7 MB
Download
Download File

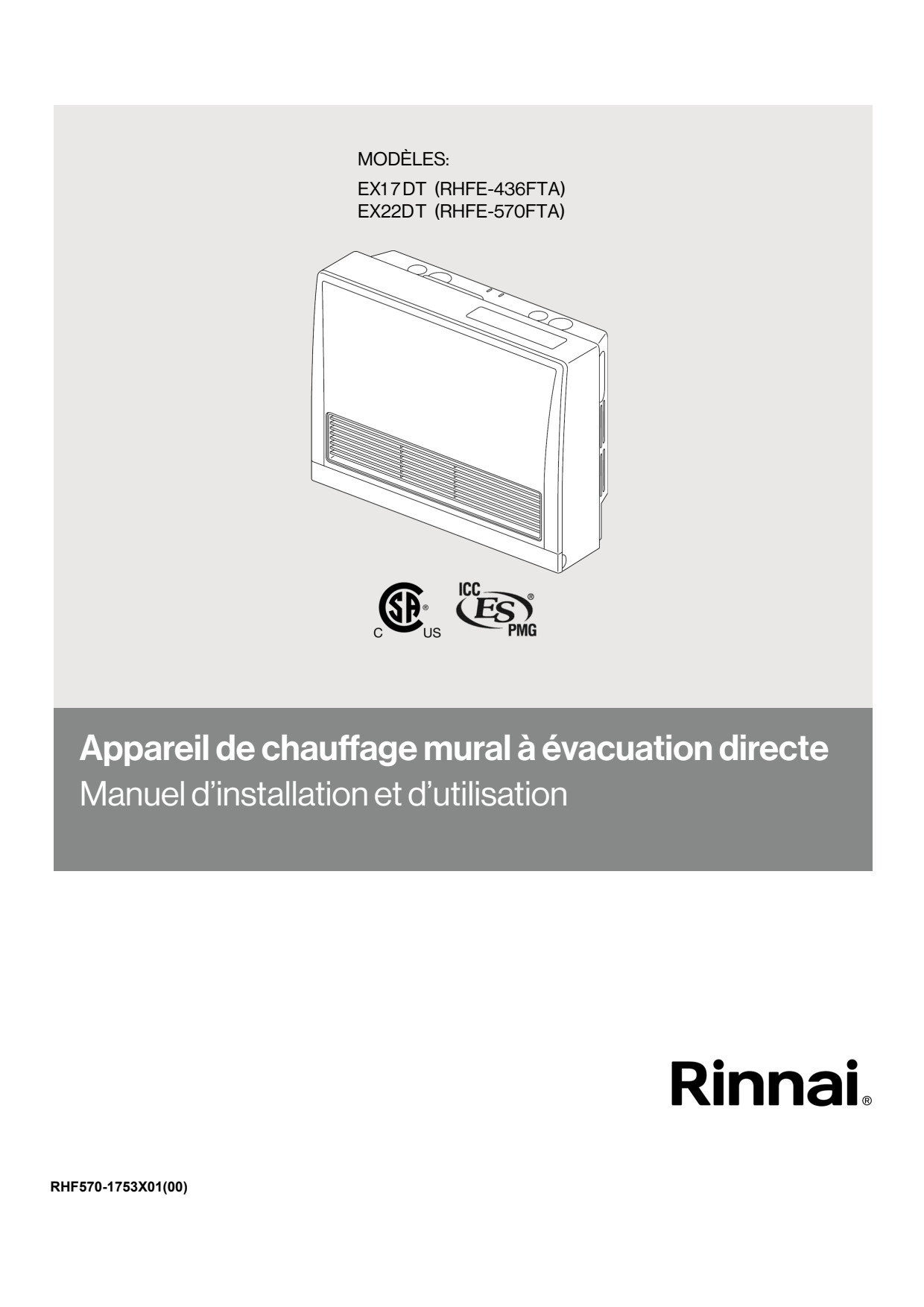

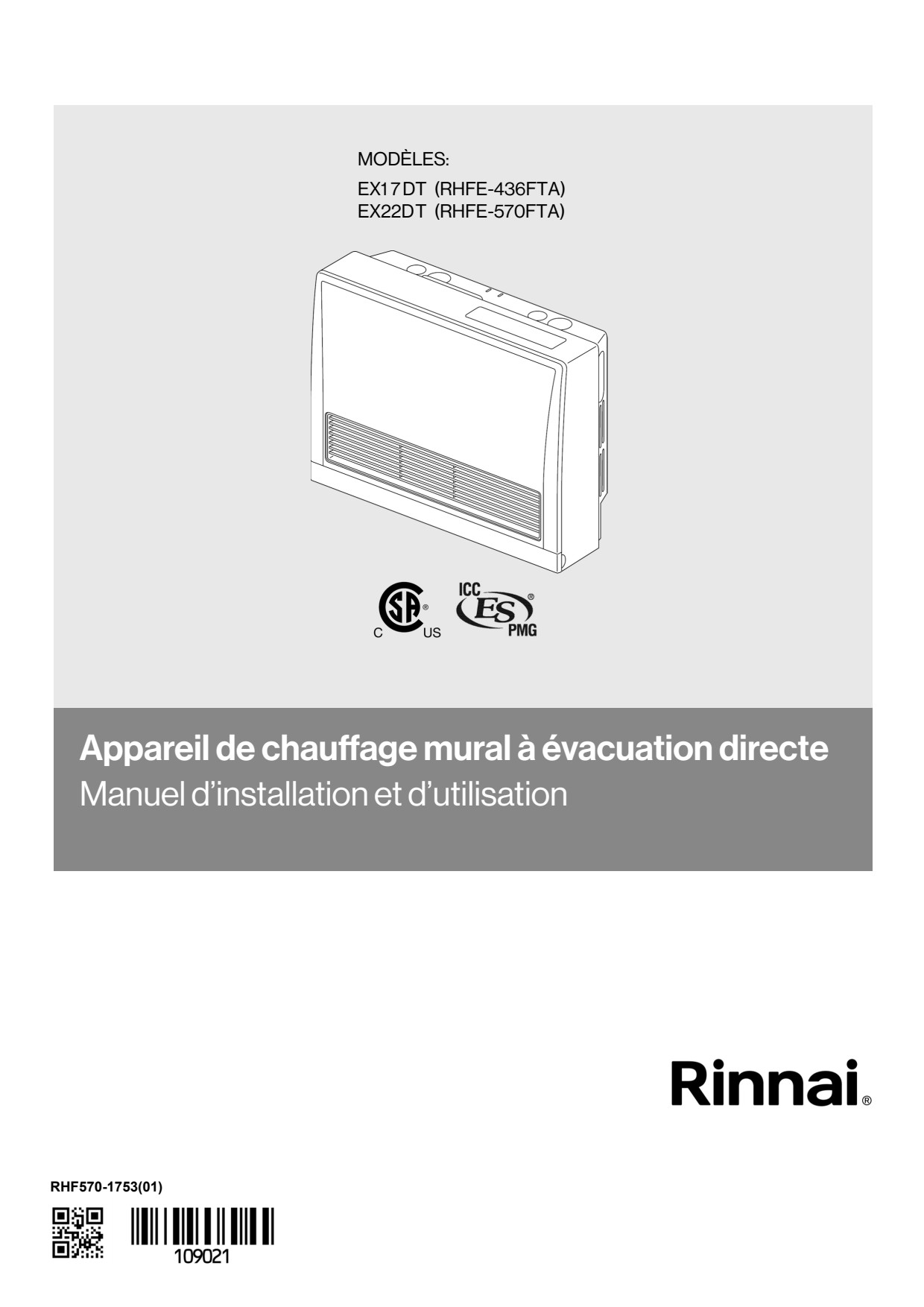

200000099 EX17DT and EX22DT Installation and Operation Manual-French
PDF 8 MB
Download
Download File

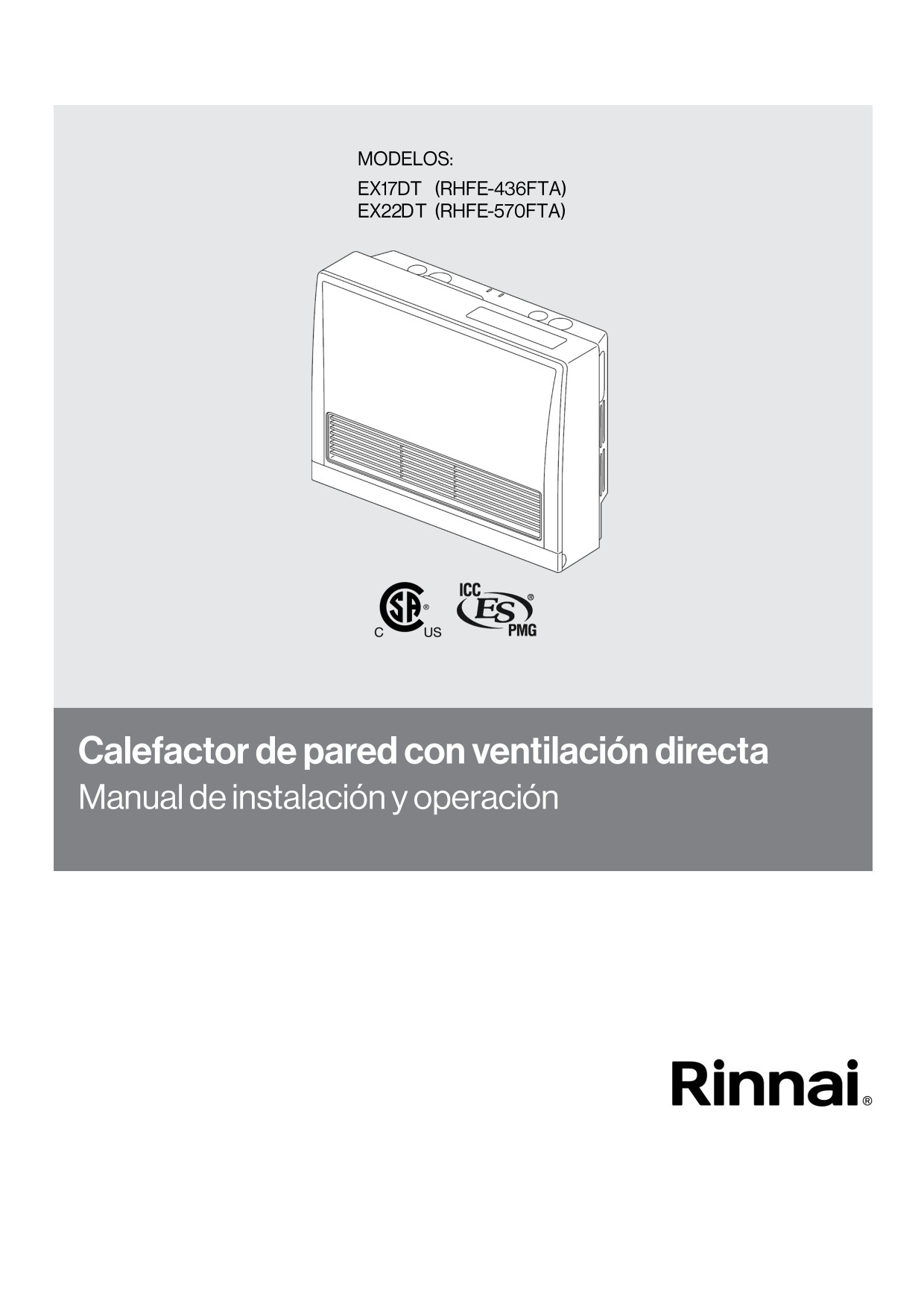

200000100 EX17DT and EX22DT Installation and Operation Manual-Spanish
PDF 9 MB
Download
Download File
Installation And Operation Manual - EX08DT/EX11DT
PDF 8 MB
Download
Download File
Installation And Operation Manual - EX17DT/EX22DT
PDF 10 MB
Download
Download File

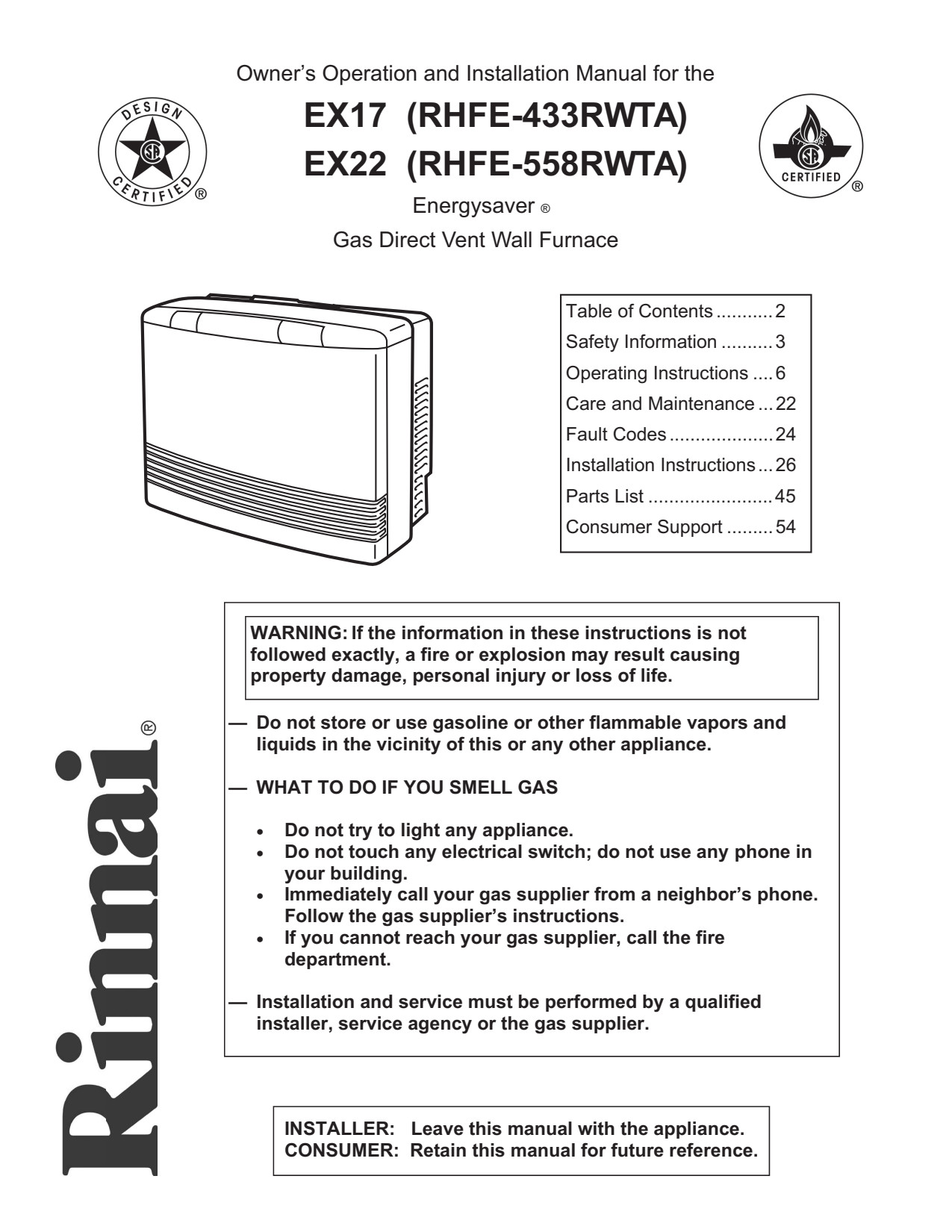

RHFE-433RWTA, 558RWTA Installation and Operation Manual
PDF 3 MB
Download
Download File
DIRECT VENT WALL FURNACE FLYER - D-SERIES
PDF 1 MB
Download
Download File

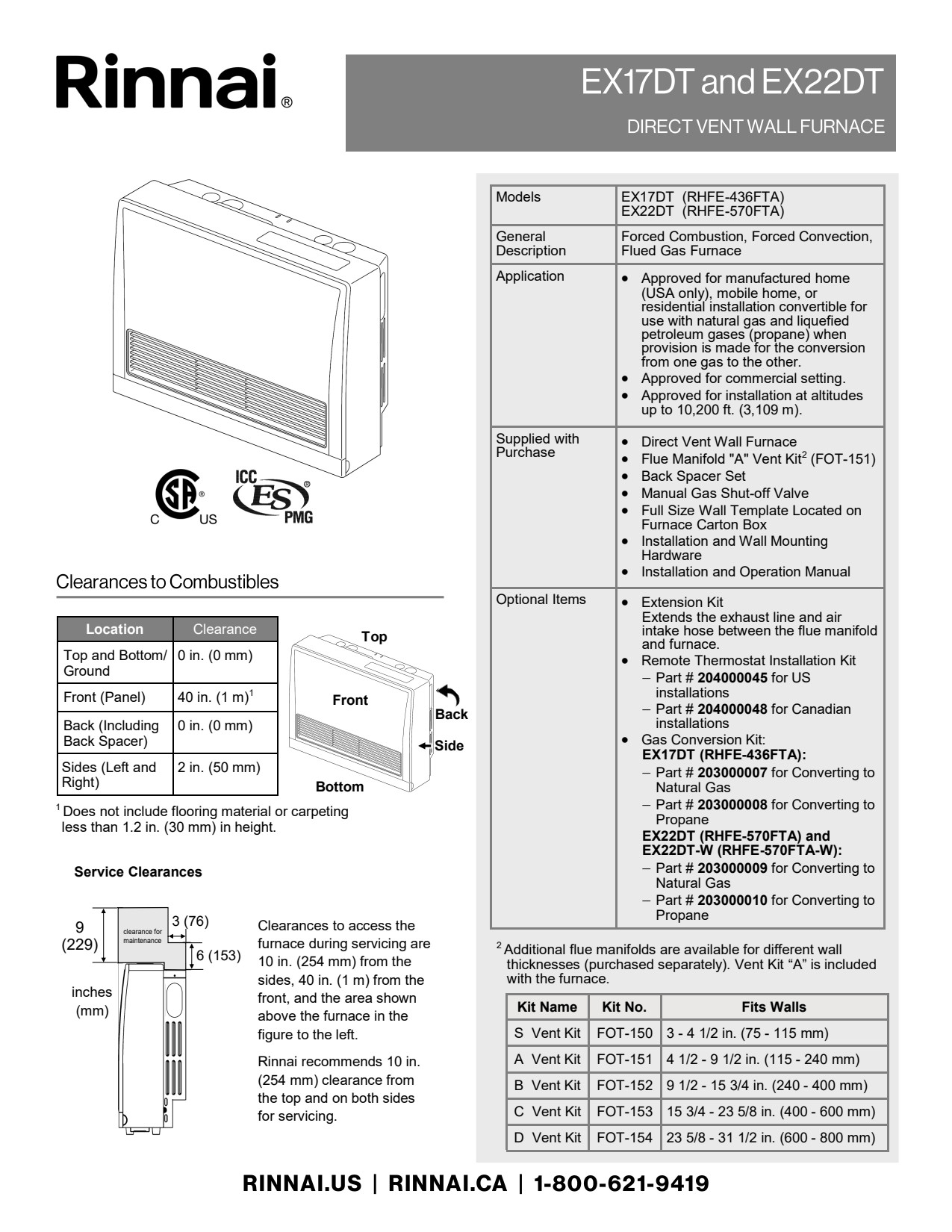

200000093 EX17DT and EX22DT Specification Sheet
PDF 647 KB
Download
Download File

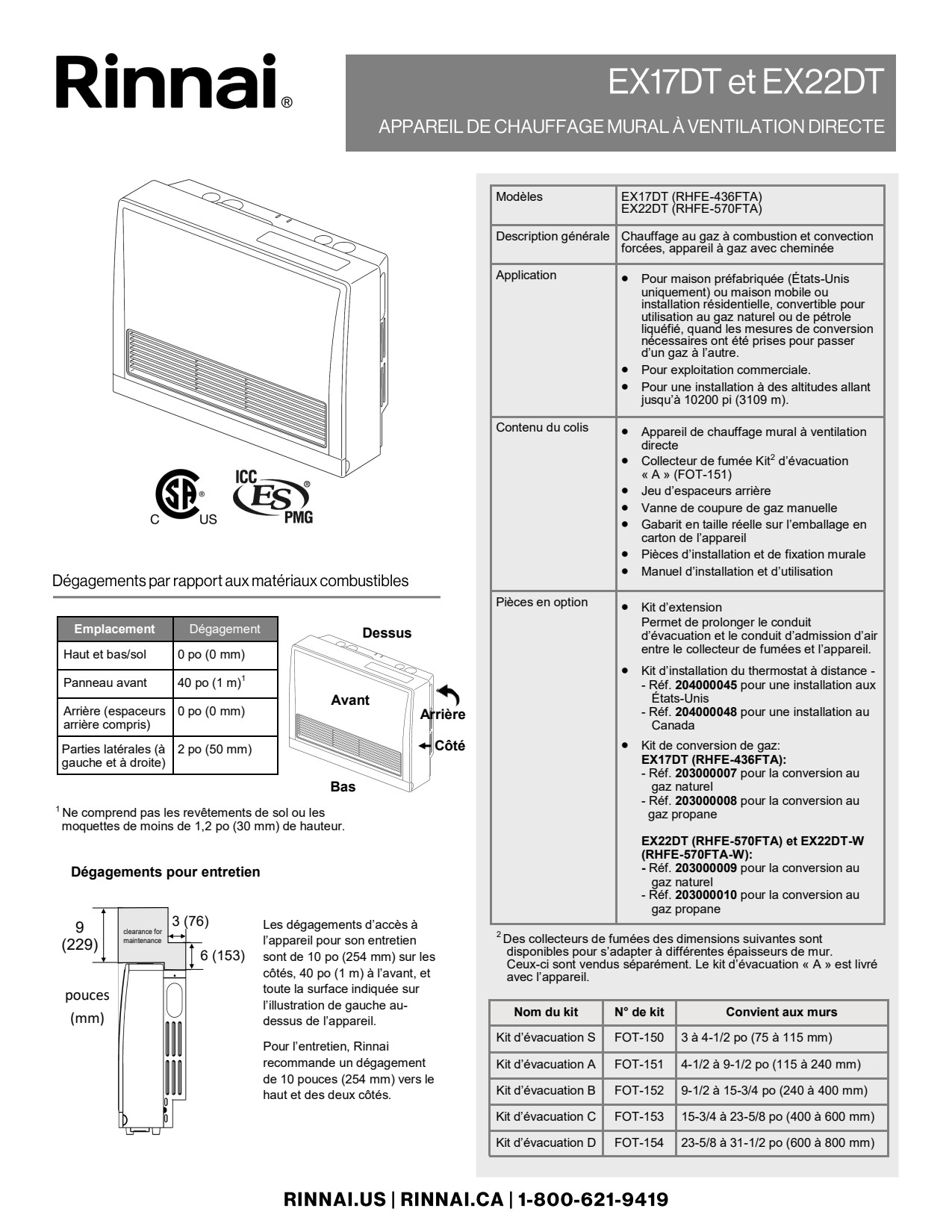

200000093-Fr EX17DT and EX22DT Specification Sheet
PDF 687 KB
Download
Download File

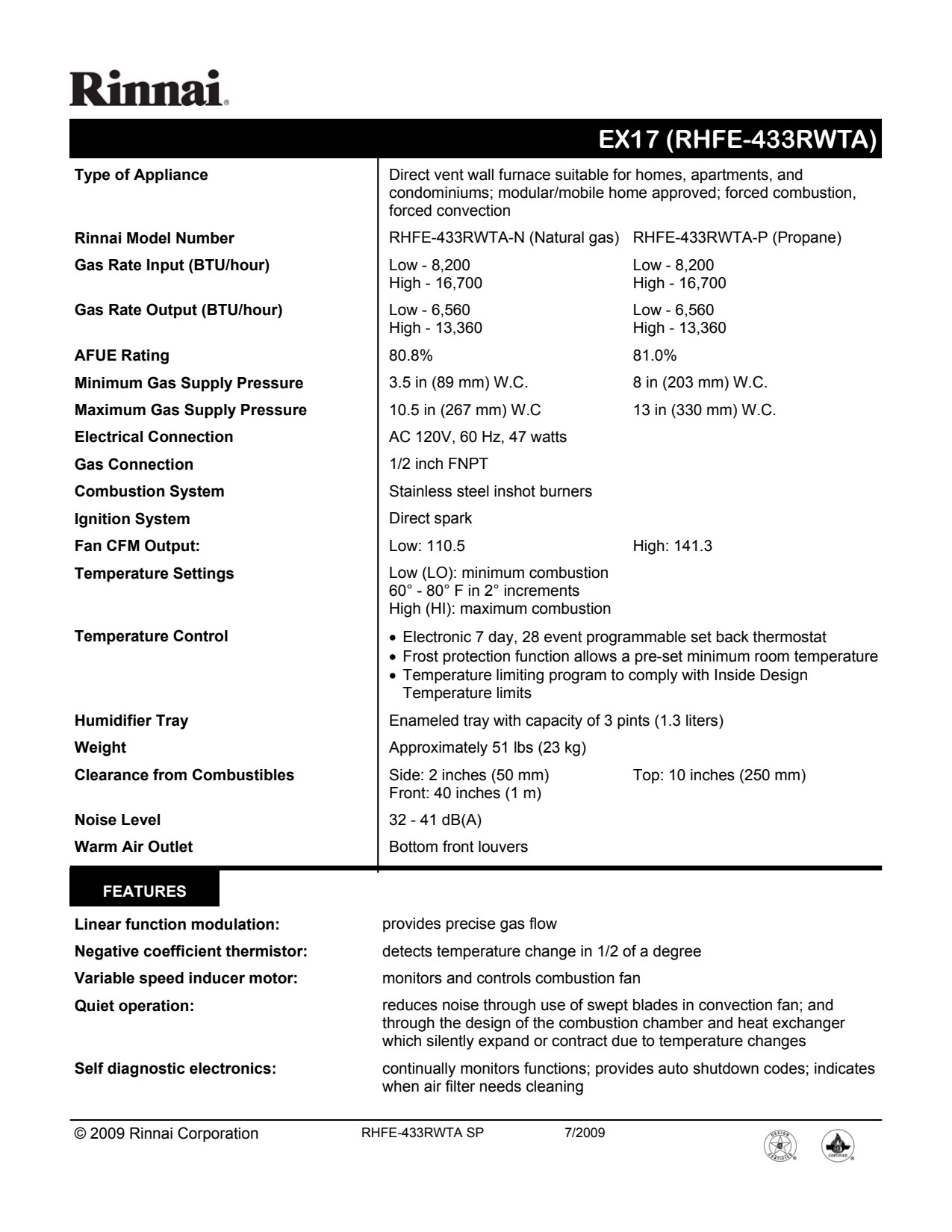

EX17 RHFE-433RWTA specification sheet
PDF 57 KB
Download
Download File
TB-081 Setting a Maximum Temperature Limit on Energysaver Models
PDF 19 KB
Download
Download File
200000078_Warranty_Direct Vent
PDF 272 KB
Download
