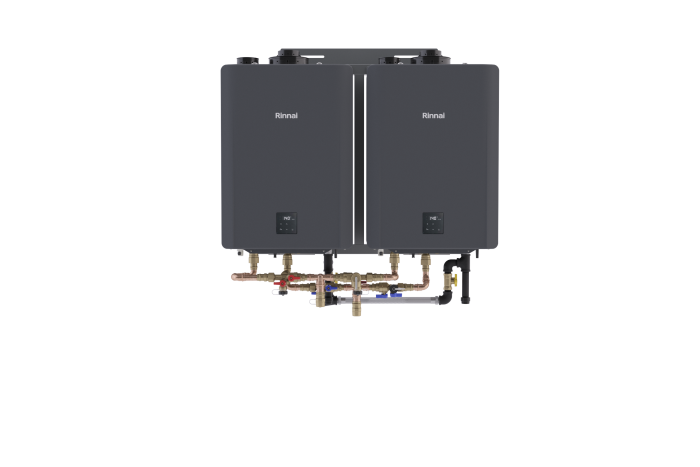

TRX02CXiN Commercial Wall-Mount Rack System Model Series
Commercial Wall-Mount Rack System (TRX)
Select a thumbnail to view a larger version

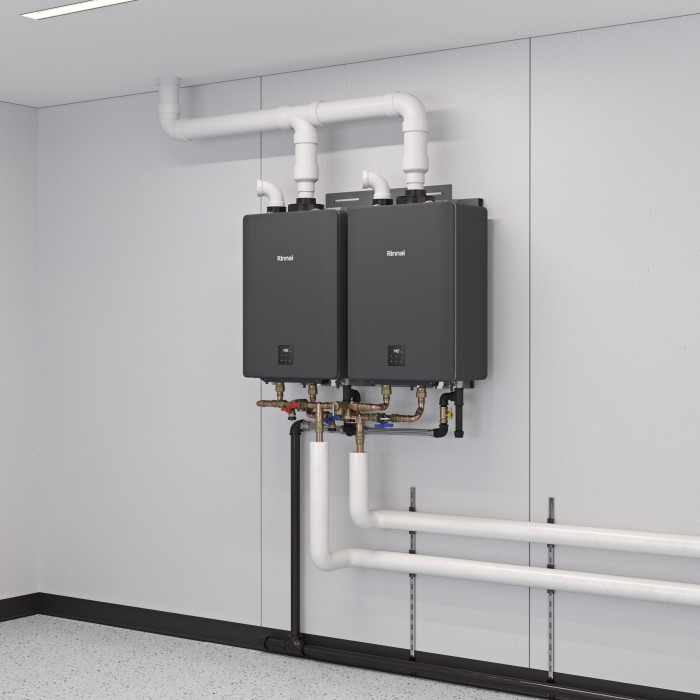

This 2-unit wall mounted design solution is a great replacement for standard and HE tanks and is ideal for food service and hospitality kitchen applications.
- Uniform Energy Factor (UEF): 0.98
- 97% Thermal Efficiency
- 15,000 BTU (minimum)
398,000 BTU (maximum)
- Indoor
- Warranty
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Product Depth | 39 in / (990.6 mm) |
|---|---|
| Product Height | 37 in / (939.8 mm) |
| Product Width | 13 in / (330.2 mm) |
| Product Weight | 160 lb / (72.6 kg) |
| Gas Type | Natural Gas |
| Installation Type | Indoor |
| Uniform Energy Factor (UEF) | 0.98 |
| Domestic Hot Water Flow Rate (Maximum) | 18 |
Documentation
-
Sensei TRS With CX Installation Instructions EnglishPDF 4 MB
-
Commercial Water Heating Solutions Brochure Canadian EnglishPDF 16 MBCommercial Water Heating Solutions Brochure Canadian FrenchPDF 16 MBUS Commercial Water Heating Solutions Brochure EnglishPDF 16 MB
-
Sensei TRS with CX Units Specification sheet EnglishPDF 1 MB
-

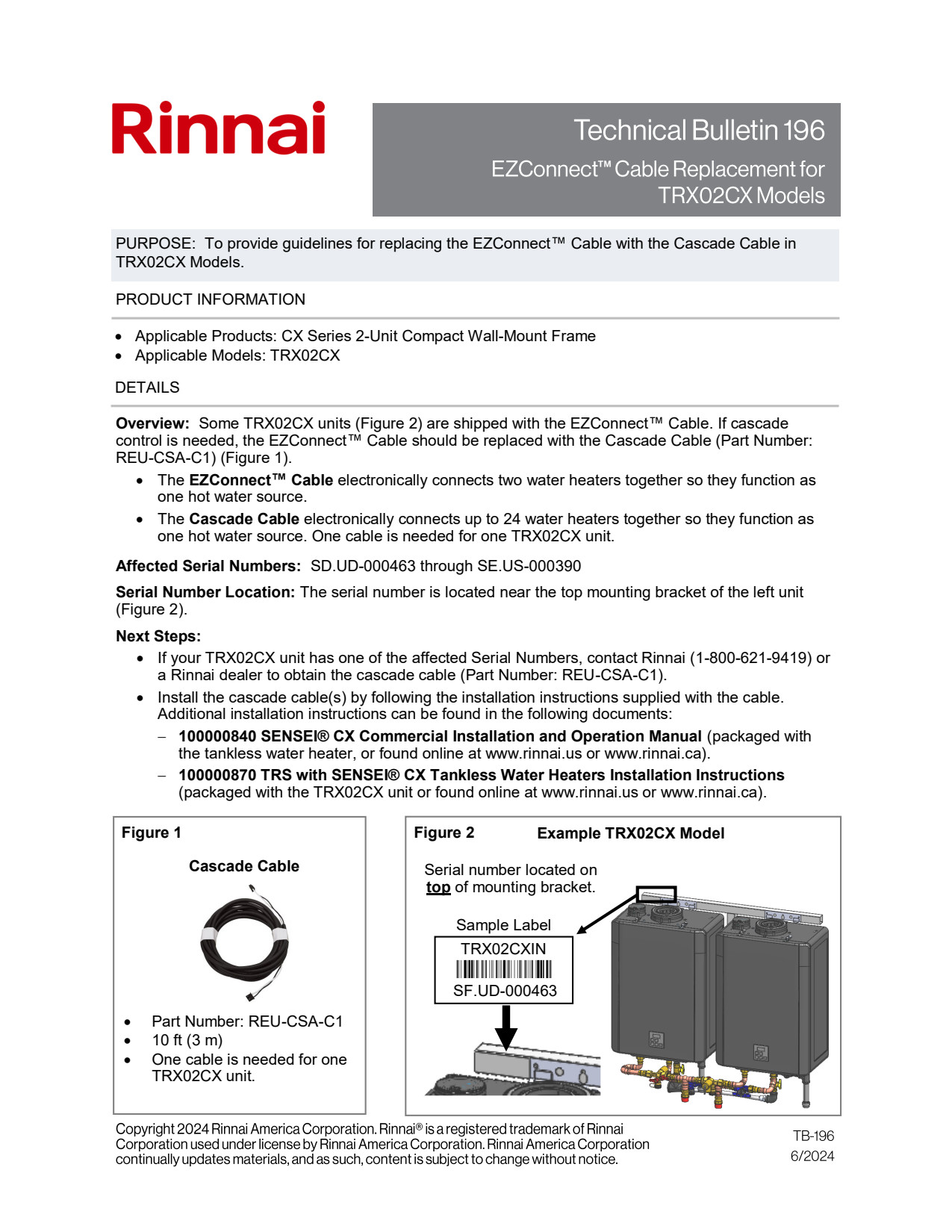

TB-196 EZConnect Cable Replacement for TRX02CX ModelsPDF 277 KB
-
100000897 TRS with SENSEI CX Wall Rack (TRX) Submittal FormPDF 1 MB
Warrantyi
| Warranty - Standard for Commercial | 1 year on Rack Components/ Refer to tankless water heater model warranty details |
|---|
iWarranty information is available in the Installation & Owner Manual.
